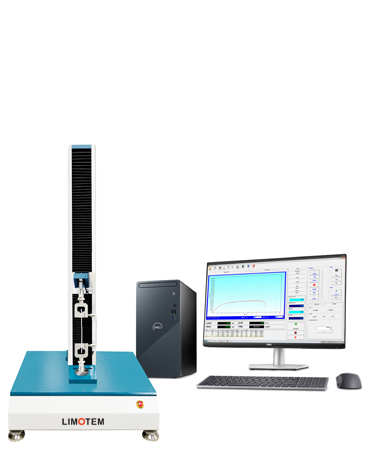

Universal Testing Machine

LM100SS

Product Features

● UTM for ultra-precise (pharmaceutical, food, cosmetics, paper, tissue)
● Compact size
● High speed Raw-Data measurement
● Skin tissue, injection needle, band, hydrogel
● Special Exclusive Grip




QM100SS is an ultra-precise micro-load test equipment optimized for measuring micro-loads such as adhesion, probe-tech, release force, softness,

and cutting strength of food, pharmaceuticals, information and communication materials.

High-performance indicators have excellent reproducibility and precision of 0.05 m/sec high-speed measurement and high resolution measurement data.

The gripping dedicated to small precision capacity is composed of adapters that are easy to attach and exchange, and can be manufactured

and used in various special forms depending on the material, size, and load of the sample.


| Digital Indicator QUATRO-100




● CE Certification
● High-speed, high-precision data measurement (Raw Data 180-240p/sec)
● Equipped with a high-precision Micro CPU (1/10,000 resolution)
● Standalone Controllers
● Built-in autonomous safety features
● Test speed storage and automatic test function
● Strain gauge expansion port (Option)



| Software Q-Pro 3.1



● Support for various tests
    (tension, tear, peeling, compression, bending, hardness, friction, repetition, maintenance, hardness test, etc.)
● Convenient sample information input function
    (automatic cross-sectional operation, continuous test measurement, automatic unit conversion, etc.)
● Various test speed settings (distance speed, load speed, multi-section speed, etc.)
● Data editing functions (excel support, parameter editing, raw data numerical view, interval setting, etc.)
● Real-time monitoring (communication, overload, safety, measurement)
● Remote Control Diagnostics and Remote Training Support
● Extensometer, strain gauge, and environmental chamber interlocking function




Test Method



Application




Specifications

MODEL LM100SS LM100S LM100SE
Capacity 5, 10Kgf 5, 10, 20, 50, 100, 200Kgf 20, 50, 100, 200Kgf
Crosshead Speed 0.1 ~ 600mm/min
Availability Travel
(Non Grip)
450mm 850mm
Operating Travel 350mm (Excluding Mini Shear Grip) 650mm (Excluding Film Grip)
Distance from
the Columns
Ø120
Indicator LCD Graphic Display LCD Graphic Display 7" Color LCD Touch Screen
Raw Data 150 ~ 240p/sec 150 ~ 240p/sec 50 ~ 120p/sec
Load Resolution < 0.002% < 0.01% < 0.02%
Safety Device Emergency S/W, Stroke & Load Limit, UP/Down Limit, Auto & Return Set Memory, Data Output (RS232C Type)
Dimensions 450(W) x 375(D) x 906(H)mm 490(W) x 500(D) x 1290(H)mm
