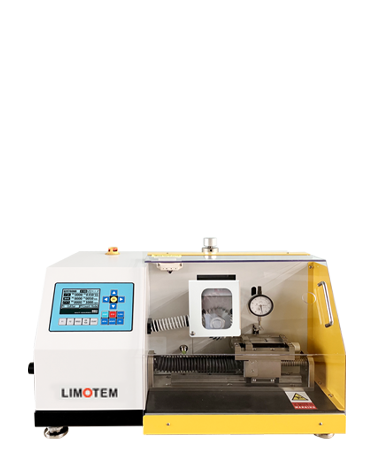

Auto Notch Machine

LM700NA

Product Features

● ASTM & ISO Replaceable Clamp
● Replace V & U-Notch Cutter
● Cutter & Transfer Table Speed Adjustment
● Notch Depth Adjustment (LM Rail)
● Vacuum system (cleaner)





The LM700NA is an automatic notch machine for machining notch grooves in plastic impact test pieces

and provides a clean surface with original notch blades (45±0.50 and 0.25R±0.05mm/hardmetal/Japan) and uniform groove depth and notch shape machining.

The low-vibration high-power BLDC motor system can be applied to freely control cutting speed and sample movement speed,

and there is no shaking or vibration during notch processing, so it can prevent uniform groove depth

and shape processing as well as degradation deformation on the surface.



Digital Indicator QUATRO-10.0



● Quatro BLDC System

● LED Digital Display

● User Guide Map

● Test method memory

● Test method program and storage (speed, distance, frequency, time, direction)



| Accessories For QM700N Series

Specifications

MODEL LM700NA LM700N
Cutting Type Auto Type Manual Type
Cutter Speed 5 ~ 3000rpm 4 Step Speed
Cutter Knife Original Carbide Alloy Metal (Japan)
Slider System LM-Guidance (Resolution ±0.003mm)
Standard ASTM D 256, JIS K 7110, ISO 179,180,294
Dimensions 680(W) x 425(D) x 430(H)mm 575(W) x 425(D) x 435(H)mm
