Semi-Auto Heating Plate Tester

LM900MA

Product Features

● Semi-auto Hydraulic Control System
● 4-Axis High Strength Frame Structure
● T.P.R System (High Precision Temperature Control)
● Surface Roughness (±0.001 mm)
● Special Steel Heating Plate
● Simple Design & Compact Size
● Footmaster for easy movement
● Various options (temp, cooling, pressure, controller)





LM900MA is a semi-auto hot press for automatically press-molding a test piece by setting the mounting pressure, temperature,

and holding time of a hydraulic automatic pressurization system and a high-power cylinder.

The Auto Electric Pump System is a device that prevents pressure stains by preventing pressure shock deformation

caused by two plates contacting at a high speed and removing the uneven pressurization speed generated during manual pressurization.

It is a hot press equipment with excellent space efficiency due to its compact size compared to an automatic hydraulic heating plate.


※ This product is a hot press, not a product subject to autonomous safety certification under the Industrial Safety and Health Act.



Sample Mold For QM900MA

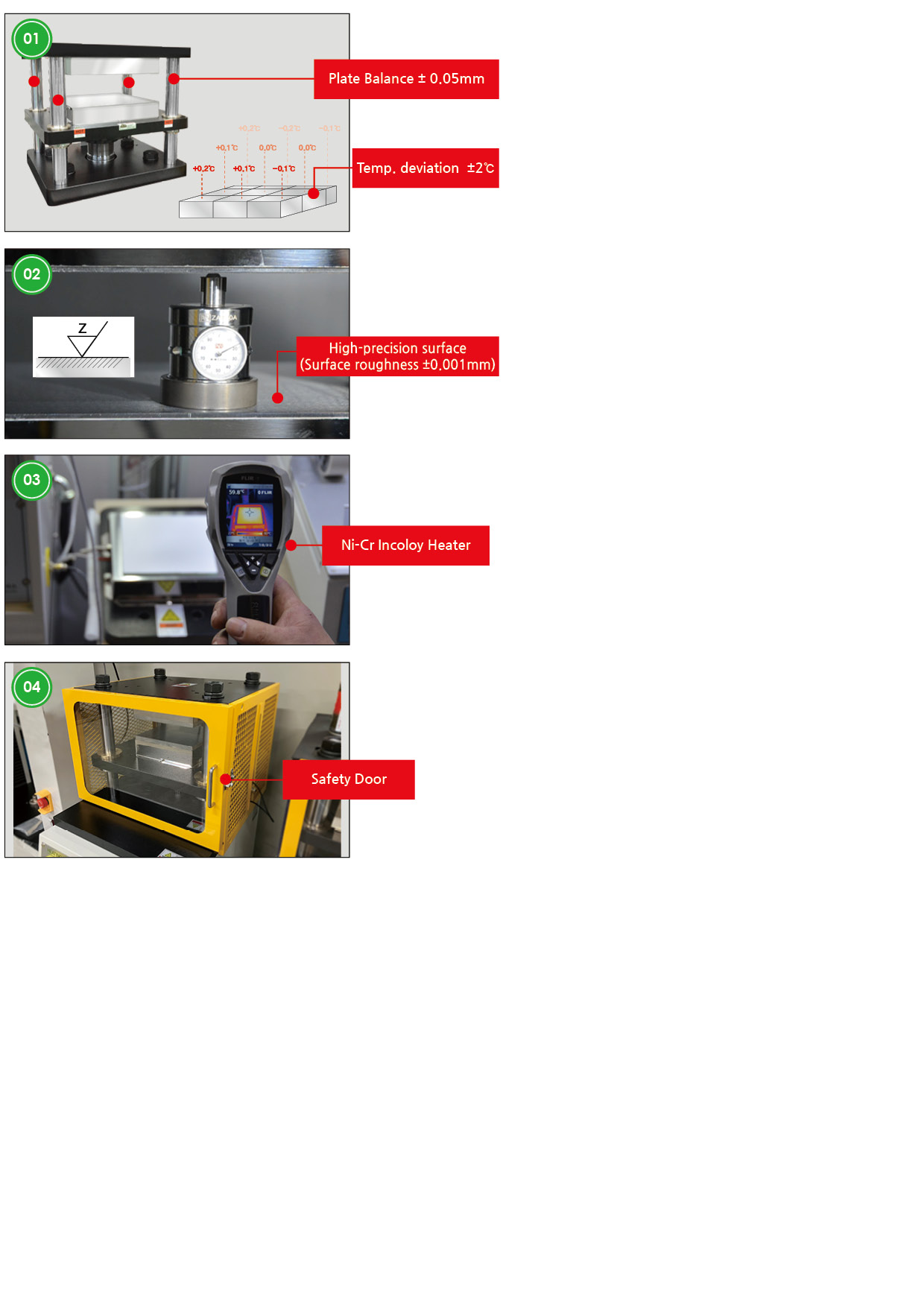

Detail of QM900MA




Specifications

MODEL LM900SA LM900MA LM900LA
Temp. Range RT ~ 320℃
Plate Size 200 x 200mm 250 x 250 mm 300 x 300 mm
Stroke between Plate Max. 80mm
Pressure Range Max. 8t Max.10t Max. 15t
Pressure Gauge Analog Type
Hydraulic Pump Auto Electric Pump System
Cooling Method Natural Cooling Natural Cooling (Option : Water Cooling)
Dimensions 540(W) x 660(D) x 1115(H)mm 540(W) x 660(D) x 1115(H)mm 590(W) x 710(D) x 1260(H)mm
