Home > PRODUCT > Impact Tester
The LM700A is a dual digital impact tester that can measure the impact strength according to the test method
with one equipment by exchanging the Izod and Charpy tool.
It is possible to measure the impact strength with stable and excellent reproducibility using high-performance digital indicators
and high-precision digital optical sensors.
■ Standard : ASTM D 256, ISO 180, ISO 179

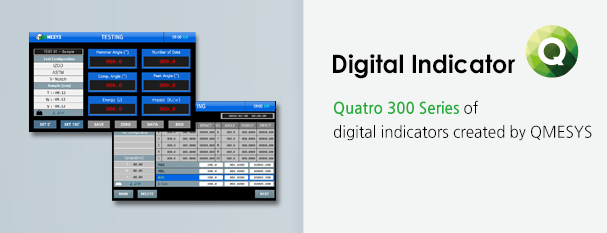

| Digital Indicator QUATRO-300
● 7" Color LCD Display & Safety Button
● First Guide Map in Korea
● Automatic calibration & automatic unit conversion (6 types)
● Automatically save data (Max.200Ea)
Specifications
| MODEL | LM700A (IZOD) | LM700A (CHARPY) | |||
|---|---|---|---|---|---|
| Test Method | IZOD | CHARPY | |||
| Capacity | 2.75J/5.5J | 5J or 10J | |||
| Angle of Hammer | 130˚ | ||||
| Angle Resolution | ± 0.1˚ | ||||
| Velocity | 3.5m/sec ±10% | 2.9m/sec ±10% | |||
| Standard | ASTM D 256, ISO 180 | ISO 179 | |||
| Dimensions | 500(W) x 370(D) x 776(H)mm | ||||
