Low. Temp Impact Tester

LM700L

Product Features

● Wide temperature range
● Cold Storage & Quick Temp Return
● Independent control system
● Double Push-Lock Clamp
● Heat Resistant Heating Glass & Body Heater
● Anti overheating, over-cooling, overheating, over-pressure





QM700L is an apparatus for analyzing the low temperature characteristics on the toughness and brittleness of the material,

and is an impact test apparatus for measuring the impact test in the environmental chamber of the temperature range of -45-150℃.

Calabash Container special structure design minimizes cold air loss caused by impact tests in open spaces

and has excellent temperature stability due to fast low temperature regression rate after the test.

It is an equipment that enables easy and convenient impact tests through various convenient functions such as thermal glass door,

sensor protection system to prevent increased rotational friction depending on temperature, sample holder, and sample removal drawer.


■ Standard :  ASTM D 256, ISO 180, ISO 179

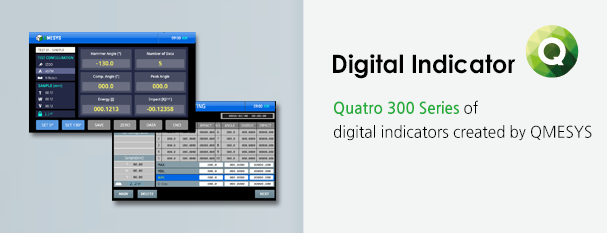

| Digital Indicator QUATRO-300-34.0




● 10" Color LCD Display & Safety Button

● First Guide Map in Korea

● Automatic calibration & automatic unit conversion (6 types)

● Automatically save data (Max.200Ea)




Specifications

MODEL LM700L (IZOD) LM700L (CHARPY)
Test Method IZOD CHARPY
Capacity 2.75J/5.5J 5J or 10J
Temp. Range -45 ~ 150℃
Temp. Accuracy 80℃ at ± 0.1℃
Pull Up Time RT ~ -40℃ within 45min
Refrigerator 1 Stage & 2 Stage
Dimensions 1100(W) x 940(D) x 1400(H)mm
