Box Drop Impact Tester

LM720B

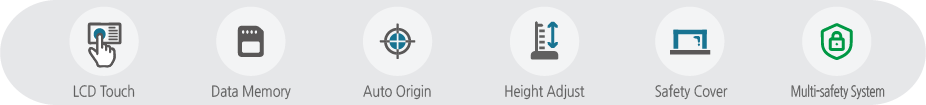

Product Features

● Gripper Adjustable angle gripper
● Automatic distance input system
● Customizable options (Height, Size, Weight)
● Auto reset to the starting point and Auto-calibration
● Multi-safety system. (Door-lock, Gripper lock, and sleep mode)





This product is intended to test and evaluate the intactness and the degree of impact the box can withstand by dropping them

at a set height. It also features a digital distance sensor rotational angle modifiable gripper to measure the vertical and deflection drop impact of the package boxes


Specifications

MODEL LM720B
Stroke 350mm ~ 1500mm
Speed Range 500 ~ 1500mm/min
Distance Resolution ± 0.01mm
Clamp Grip Robotics Arm
Dimensions 950(W) x 1000(D) x 2300(H)mm
